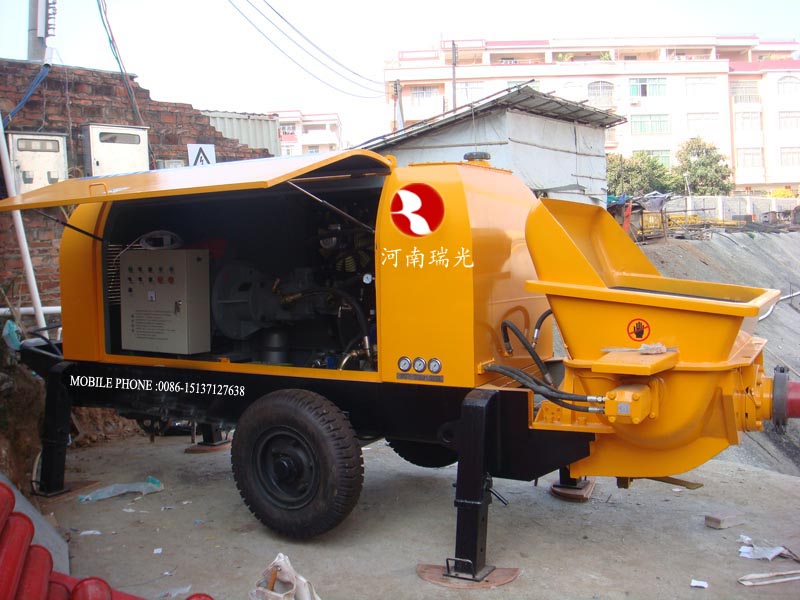

Main application:
The concrete pump required quantity is big,high marking, strict quality requirements, long distance transportation of high rise buildings, municipal construction, electric power, energy, traffic, civil and industrial buildings and narrow construction sites.
Performance characteristics:
1.Using three pump system, hydraulic circuit without mutual interference, system operation.
2.With the counter-pump function, to promptly remove the plugging failure, and short downtime to be expected.
3.The use of advanced S tube distribution valve, can automatically compensate the wearing clearance, good sealing performance.
4.By the wear-resistant alloy glasses plate and cutting ring to float, long service life.
5.Long stroke hydraulic cylinder, to extend the service life of the piston and he cylinder.
6.Optimization design of the hopper, easy cleaning, good suction performance.
7.Automatic centralized lubrication system, ensure the machine running effective lubrication.
8.Provided with remote control function, operation more convenient and safe.
9. All components used in GB, good Interchangeability.
Technical parameter
|
item |
HN80.16B |
|
Maximum theoretical concrete conveying capacity (m3/h) |
84 |
|
Maximum delivery pressure (Mpa) |
16 |
|
Theoretical vertical conveying distance (m) |
320 |
|
Theoretical horizontal conveying distance(m) |
1000 |
|
Hydraulic system type |
open |
|
High pressure of pumping system(Mpa) |
32 |
|
Dynamic form |
Electric motor |
|
Rotational speed (r/min) |
1480 |
|
Power (kw) |
110 |
|
Type of distribution valve |
S valve |
|
Concrete conveying pipe diameter (mm) |
Φ125 |
|
Maximum aggregate size (mm) |
60mm |
|
Delivery cylinder diameter* travel (mm) |
Φ200×1800 |
|
High low voltage switch |
yes |
|
Hydraulic pressure fuel tank capacity(L) |
580 |
|
Hopper volume (m3) |
0.8 |
|
conveyor height of hopper (mm) |
1380 |
|
Drag line speed(km/h) |
<=8 |
|
Outline dimensions L*W*H (mm) |
6300×2160×2600 |
|
Weight of machine (kg) |
6500 |
